Triumph T100RR

‘The story of this Tiger 100 begins with its import from America in 2016-17 by Kursaal Classics.

Initially, it wasn't in its Tiger 100RR configuration but had been converted at some point into a road-going Pre-Unit Triumph. The bike was purchased and restored toits original spec by Keith Pottinger, a well-known Triumph enthusiast recognised for his work on early 1950s Thunderbird projects.

Keith's interest in the bike was sparked when he encountered it in a rather dilapidated condition at the Kempton Autojumble. Over the next couple of years, he delved into researching the Tiger100 RR, with his findings confirmed by Richard Wheadon. Wheadon authenticated that the frame was indeed a 1957 Tiger 100 competition track bike, one of only 142 sent by Triumph to Baltimore in February 1957. These models were exclusively built for competition racing and not intended for road use.

The bike featured a rigid Triumph frame paired with a Tiger 100 engine that incorporated the newly developed ‘Delta’ head which was introduced in 1957. This innovative head design allowed for the installation of twin carburetors, specifically large-bore GP2 carbs in this case. The oil tank specific to the T100RR, situated behind the rear down tube, was meticulously fabricated based on various drawings and images of and original item.with the fuel tank being sourced from Ace Classics in London.

This rare motorcycle now proudly resides in a collection of Triumphs, showcasing not only its rich history but also the wide-ranging influence the Triumph brand had on the oval track, road racing, and off-road in desert enduro races.

Triumph was the brand that left a significant mark in both the UK and the US, in fact,….. globally!

IMG_1141 2.jpg
IMG_1101 2.jpg
IMG_1137 2.jpg
IMG_1134 2.jpg
IMG_1119 2.JPG
IMG_1127 2.JPG
IMG_1128 2.jpg
IMG_1105 2.jpg
IMG_1125 2.JPG
IMG_1124 2.JPG
IMG_1116 2.jpg
IMG_1111 2.JPG
IMG_1104 2.jpg
IMG_1102 2.jpg
IMG_1097 2.jpg
IMG_1094 2.JPG
IMG_1091 2.jpg
IMG_1081 2.jpg
IMG_1123 2.JPG
IMG_1103 2.jpg

Bike Technical Details:

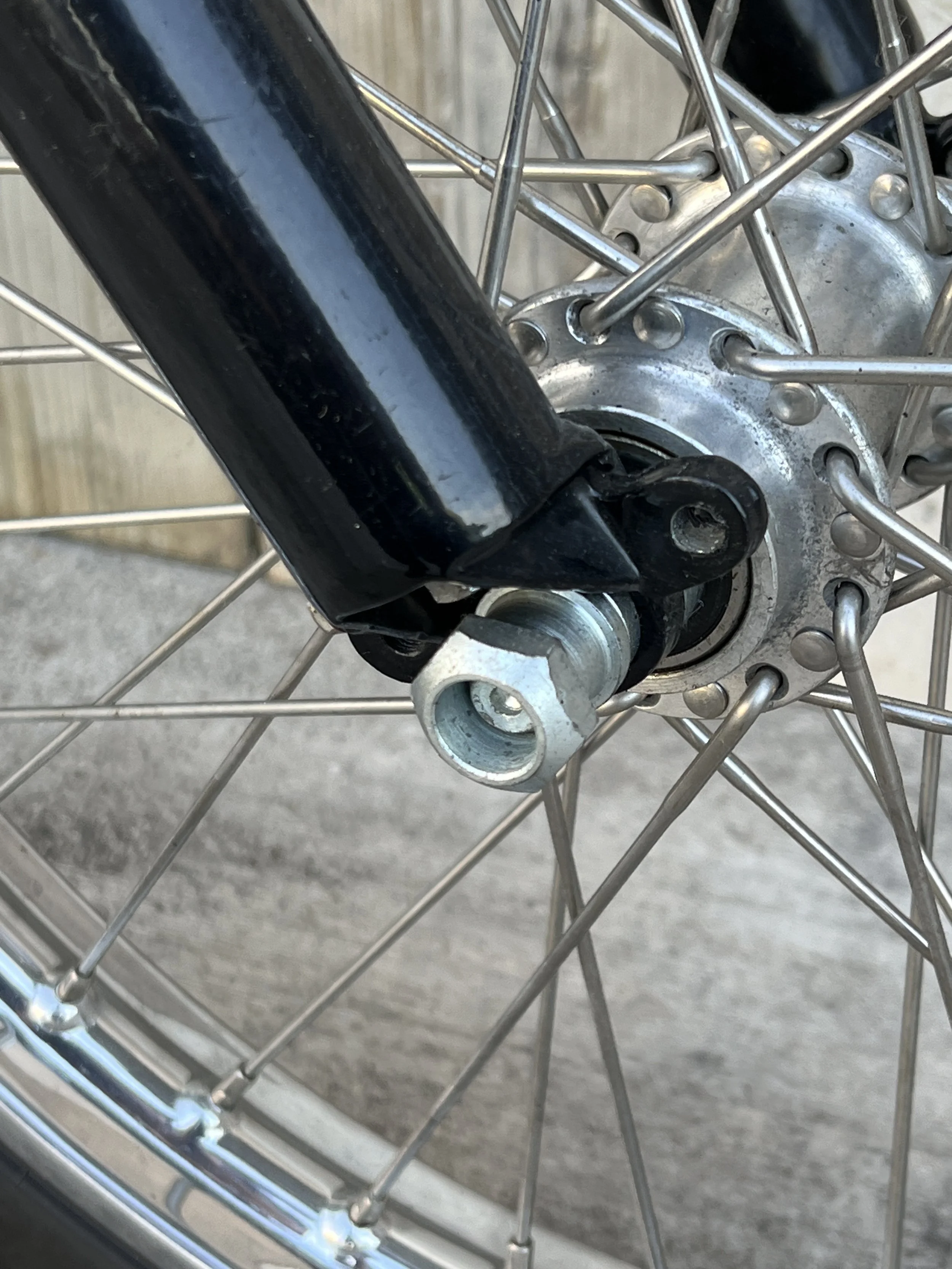

  • The front wheel is aluminium cotton reel hub laced to a 20 inch rim with no front brake!

  • A front brake lever has been fitted and connected to the rear brake

  • The front tyre is an Ensign Universal 3.25 x 20

  • The rear wheel is standard steel for weight with a stock 43 teeth rear sprocket.

  • The rear tyre is Dunlop 4.00 x 18

  • GP rear mudguard stays, alloy guard with leather bum pad with independant age related seat.

  • GP front fork brace

  • Fuel tank is period with correct paint colours and fitted with a Vokes oil filter.

  • Oil Tank (new fabrication)

  • Lucas racing magneto.

  • Gearbox is standard ratio.

  • The clutch is new stock.

  • It has the full chain case on the primary side. American flat track racers retained the complete assembly due to racing on sand/gravel to stop the debris going in the primary chain so this is dead right for the bike.

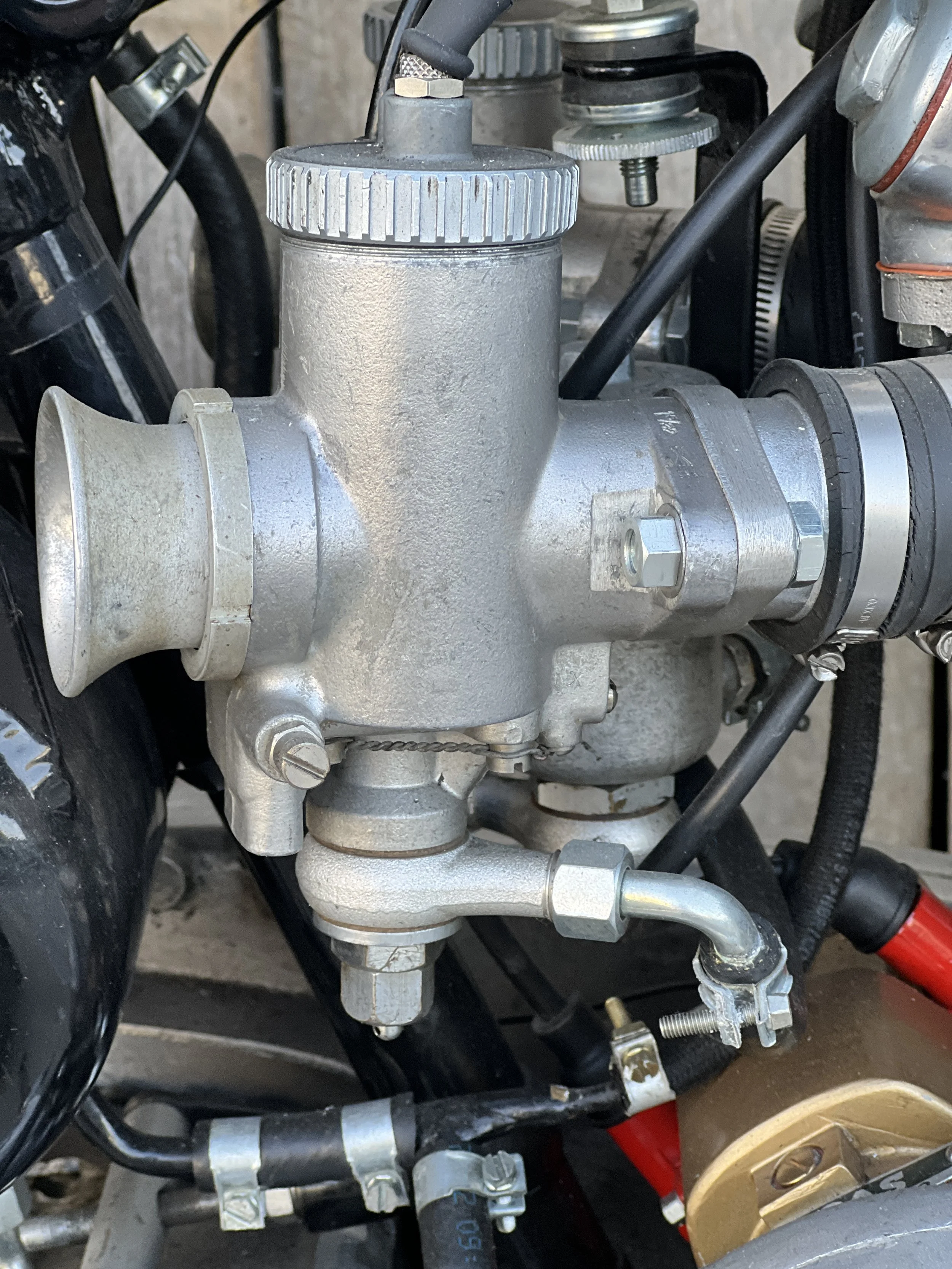

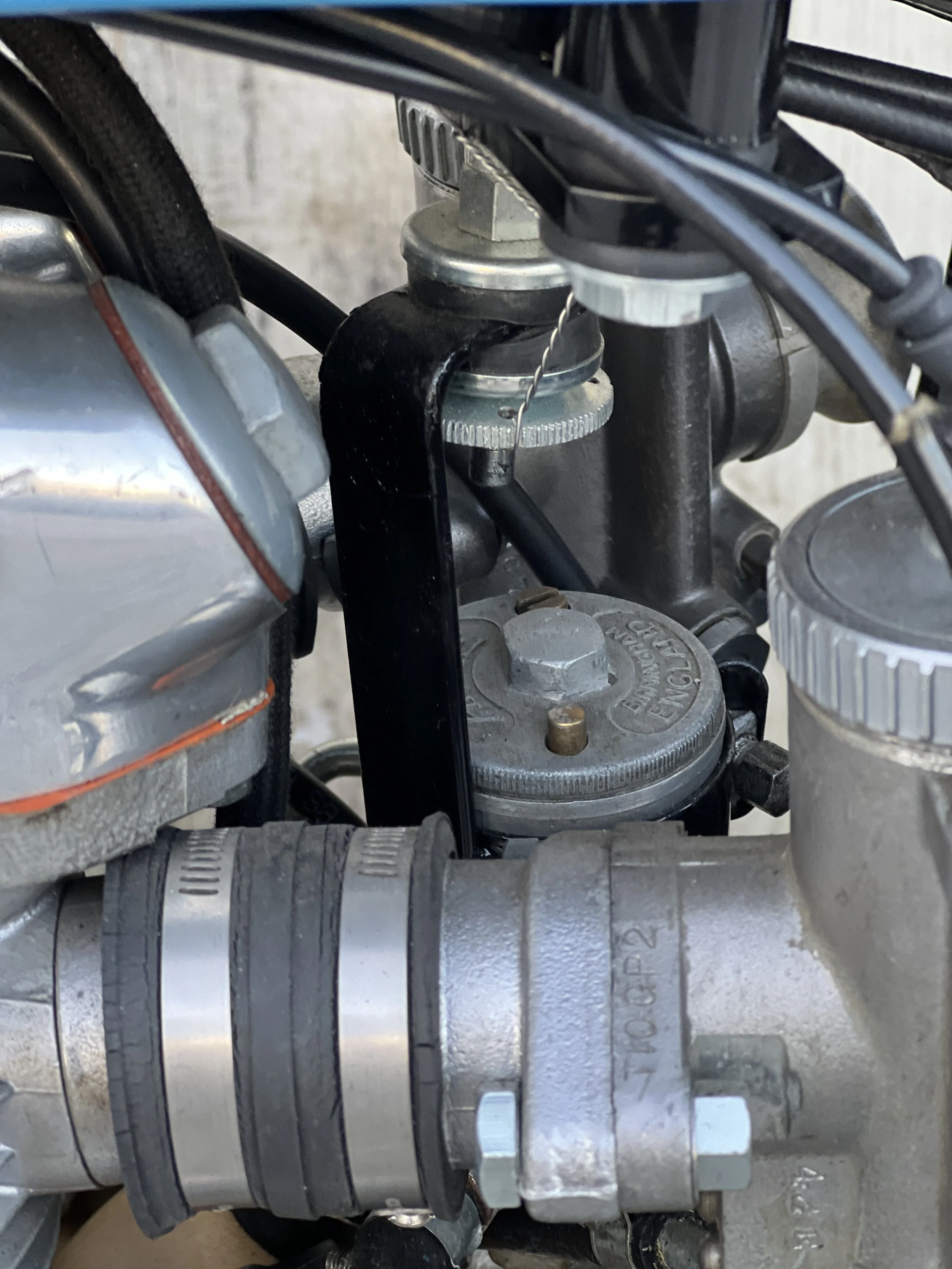

  • The carbs are 1.5/32” GP2 with remote float chamber and rubber mounted!

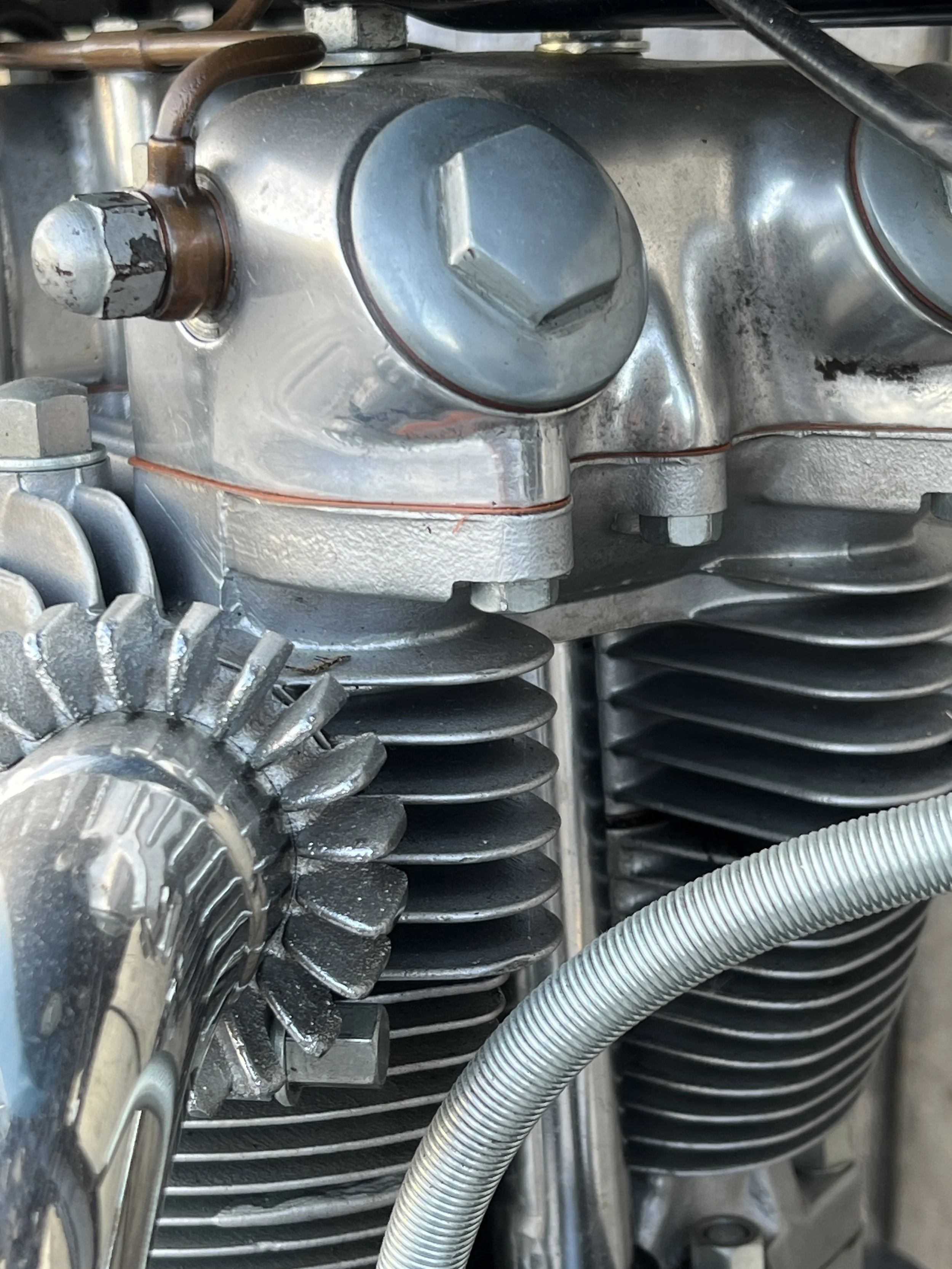

  • All alloy 500cc motor with a new for the season “Delta” or Splayed head allowing for larger bore carburettors to be fitted, hence the GP2 carbs.

  • 9.5:1 pistons

  • Large inlet valves

  • The dynamo hole has been fitted with a factory bevel gear drive that connects to a Chronometric Rev counter fitted on the handle bars.

This bike is built up of new parts and fabricated parts. The oil tank is made from specific drawings and made in Aluminium and painted
